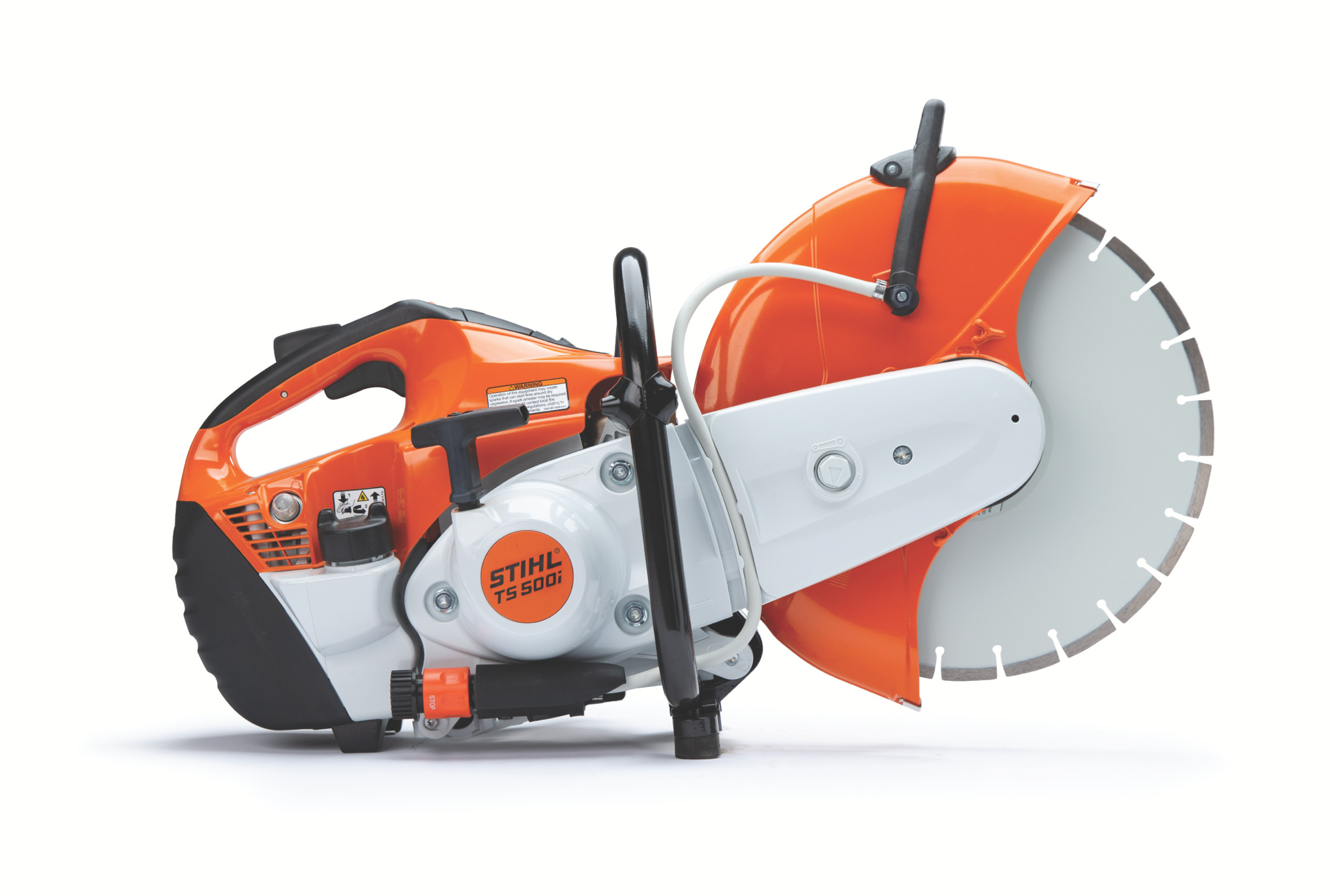

STIHL TS 500i Cutquik 14″
Industry-first fuel-injected handheld cut-off machine. 5.30 HP, 14″ cutting wheel, X2 air filtration at 99.96%, and Electronic Water Control. Over 15% more power than carbureted models with no choke required for cold starts.
$2,149.99
To maintain brand standards, this product is only available for purchase in-store.
As dealers, we are required by our manufacturer to unpack, prep, and test every unit we sell and then take our customers through a short training session on the parts and controls of the unit both for their safety and protection as well as familiarity with the power tool. This hands-on approach has continued to serve our company efficiently and well for over 50 years. So, we appreciate your understanding when we cannot ship certain products from our website.
Please call 972-235-2086 for details or to arrange in-store pickup.
Stihl TS500-14 Description
An industry first: the STIHL TS 500i STIHL Cutquik is the first handheld outdoor power tool to offer an electronically controlled fuel injection system. By eliminating the choke entirely, starting becomes a simple three-step process — set the switch to on, prime, and pull. The fuel injection system delivers over 15% more power and performance compared to carbureted cut-off machines in the same class, with optimal torque maintained throughout the RPM range.
The 5.30 HP engine powers 14-inch (350mm) cutting wheels for all-purpose building, civil engineering, and road construction work. Electronic Water Control (EWC) lets the operator easily adjust water flow to the blade while cutting and automatically stops water flow when the machine returns to idle — eliminating manual valve adjustments between cuts. The X2 Air Filtration System achieves 99.96% cleaning efficiency through cyclone pre-separation, keeping filter service intervals extremely long even in high-dust cutting environments.
STIHL ElastoStart shock-absorbing starter handle, semi-automatic belt tensioning for extended belt and bearing life, and anti-vibration system for operator comfort round out a machine that raises the standard for fuel-injected cut-off performance. An abrasive wheel is included; diamond wheel sold separately. STIHL commercial warranty — verify with dealer.
Stihl TS500-14 Features
First Fuel-Injected Cut-Off Machine
Puts the first electronically controlled fuel injection system in a handheld cut-off machine, eliminating the choke entirely and delivering over 15% more power than carbureted models.
Choke-Free Starting
Electronic fuel injection makes starting a simple three-step process: switch on, prime, pull. No choke setting, no flooding risk — reliable starts every time, in any temperature.
5.30 HP for 14" Wheels
4.4 cu-in engine delivers 5.30 HP to 14-inch (350mm) cutting wheels for demanding building, civil engineering, and road construction work that requires sustained high-power output.
Electronic Water Control (EWC)
EWC allows precise water flow adjustment during cutting and automatically stops water flow at idle — no manual valve turn-off between cuts, reducing operator distraction on site.
X2 Air Filtration System
X2 Air Filtration removes 80% of dust particles via cyclone routing before reaching the primary filter, achieving 99.96% efficiency with filters rated for up to a full year of service.
Optimal Torque Across RPM Range
Fuel injection delivers optimal torque throughout the RPM range, not just at peak RPM — providing consistent cutting force during load transitions and material density changes.
Semi-Automatic Belt Tensioning
Re-tensions the belt automatically to maintain consistent tension, extending belt and shaft bearing service life and reducing replacement frequency on construction sites.
STIHL ElastoStart
ElastoStart starter handle with built-in shock absorber reduces pull-cord effort and smooths out compression peaks for easier, less fatiguing starts at the beginning of each shift.
Stihl TS500-14 Specifications
| Engine | STIHL 2-stroke with electronic fuel injection (STIHL i) |
| Engine Displacement | 4.4 cu-in |
| Engine Power | 3.90 kW / 5.30 HP |
| Cutting Wheel Diameter | 14 in. (350 mm) |
| Air Filtration | X2 Air Filtration System, 99.96% efficiency |
| Water Control | Electronic Water Control (EWC) — auto-stop at idle |
| Starting | Choke-free electronic fuel injection; ElastoStart |
| Belt Tensioning | Semi-automatic |
| Weight | 22.5 lbs. (without cutting disc) |
| Consumer Warranty | |
| Commercial Warranty | Verify with dealer |
