STIHL TS 420 Cutquik 14″

SKU: TS420Categories: Cut-Off Machines, Industrial

Not yet rated(0)

All-purpose 14″ cut-off machine for road construction and landscaping. 4.40 HP STIHL 2-stroke engine, X2 air filtration at 99.96% efficiency, IntelliCarb compensating carburetor, and semi-automatic belt tensioning for reliable daily use on demanding job sites.

$1,509.99

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Stihl TS420 Description

The STIHL TS 420 Cutquik is the all-purpose 14-inch cut-off machine professionals rely on for daily road construction and landscaping work. Powered by the same 4.40 HP STIHL 2-stroke engine as the TS 410, the TS 420 handles the larger 14-inch (350mm) cutting wheel for cuts up to 4.9 inches deep through concrete, asphalt, stone, and structural materials.

X2 Air Filtration enters air into the filter housing in a swirling cyclone motion, removing 80% of dust particles before they reach the primary and secondary filters. Up to 99.96% cleaning efficiency with filters that can last up to a year, cutting maintenance interruptions on busy job sites. IntelliCarb automatically adjusts the air-fuel ratio as the filter loads, maintaining correct engine RPM without operator intervention.

ElastoStart reduces pull-cord effort with a built-in shock absorber. Semi-automatic belt tensioning maintains consistent belt tension for extended belt and bearing life. A water connection with quick connector enables wet cutting for dust control when required. An abrasive wheel is included; a diamond wheel is sold separately. STIHL commercial warranty. Verify with dealer at time of purchase.

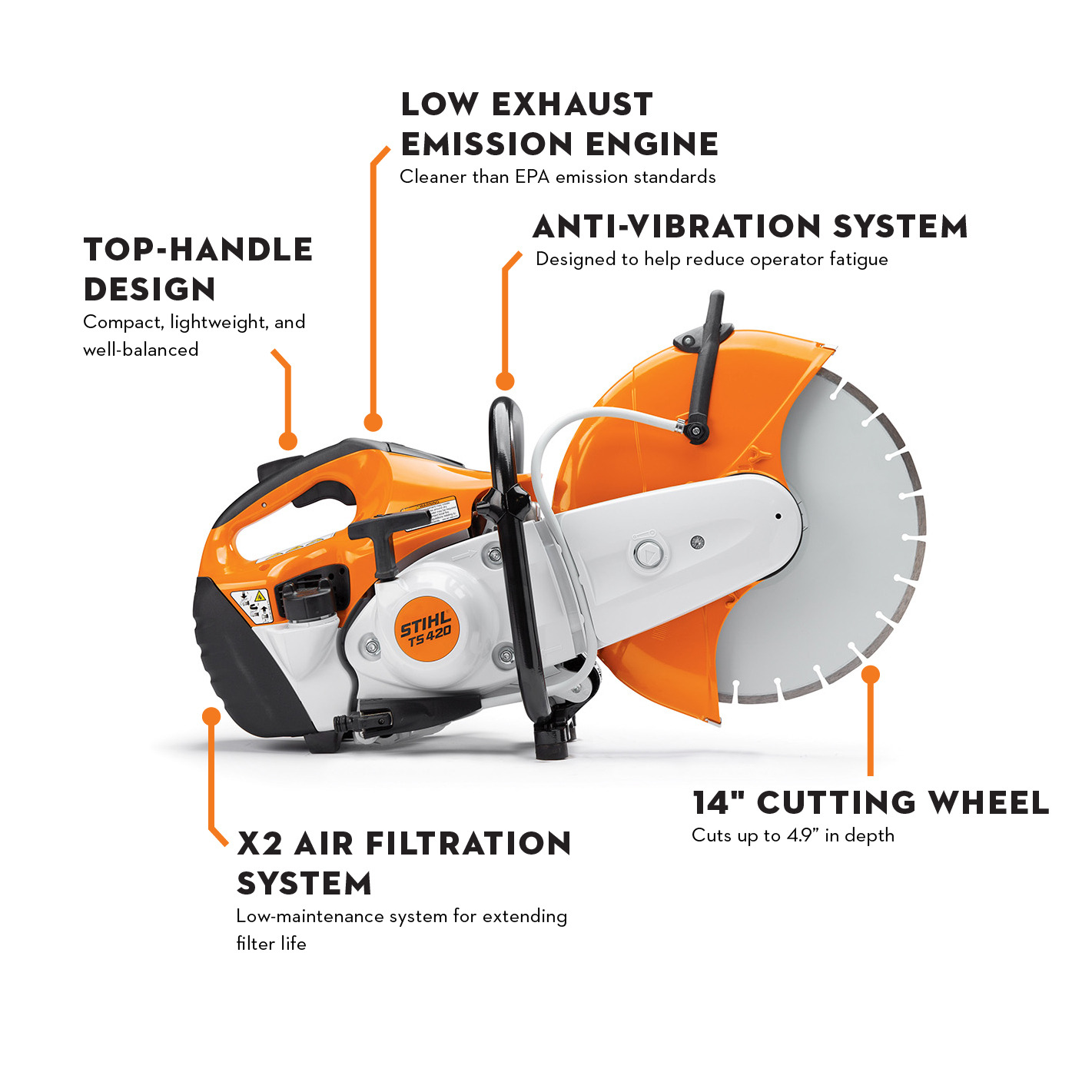

Stihl TS420 Features

4.40 HP STIHL Engine
STIHL 2-stroke engine powers 14-inch cutting wheels for cuts up to 4.9 inches deep through concrete, asphalt, stone, and structural materials in road construction and landscaping applications.
14" Cutting Wheel Capacity
Handles 14-inch (350mm) cutting wheels for cuts up to 4.9 inches deep, deeper than the TS 410, making it suited for thicker concrete slabs and deeper material cuts.
X2 Air Filtration System
X2 Air Filtration removes 80% of dust particles via cyclone routing before reaching the primary filter, achieving 99.96% efficiency with filters that can last up to a full year.
IntelliCarb Compensating Carburetor
Automatically adjusts the air-fuel ratio as the air filter loads, maintaining correct engine RPM in dusty cutting conditions without any manual carburetor adjustment.
STIHL ElastoStart
ElastoStart starter handle with built-in shock absorber reduces pull-cord effort and smooths out compression peaks, making the machine easier to start at the beginning of each shift.
Semi-Automatic Belt Tensioning
Re-tensions the belt automatically to maintain consistent tension, extending belt and shaft bearing service life and reducing replacement frequency on job sites.

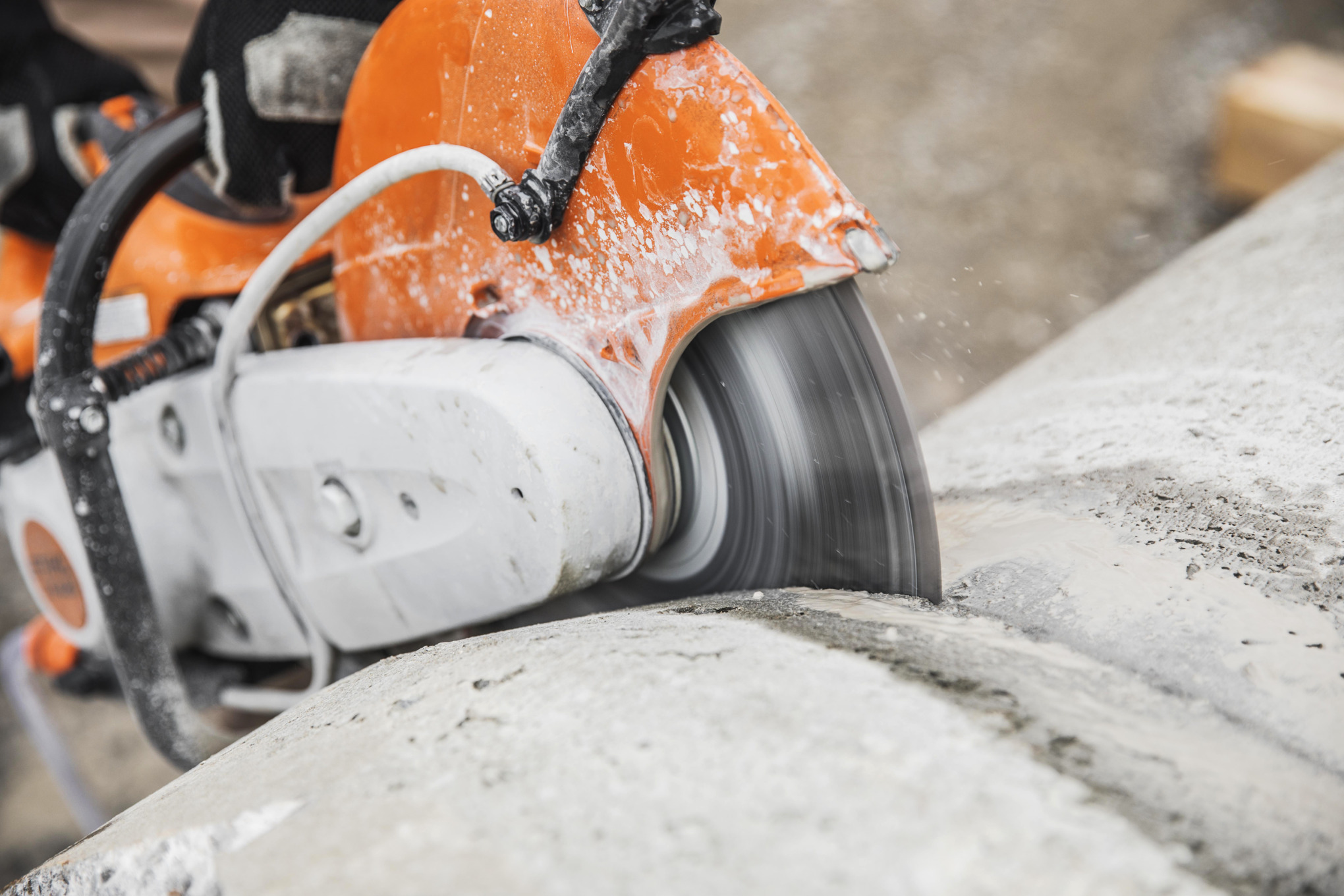

Water Connection
Water connection with shut-off valve and quick connector enables wet cutting for dust suppression, blade cooling, and job site compliance with dust control requirements.
Anti-Vibration System
Reduces transmitted vibration to the operator through STIHL’s AV system, keeping fatigue in check during extended cutting sessions.

Stihl TS420 Specifications


Engine	STIHL 2-stroke
Engine Displacement	4.1 cu-in
Engine Power	3.20 kW / 4.40 HP
Cutting Wheel Diameter	14 in. (350 mm)
Max Cutting Depth	4.9 in.
Air Filtration	X2 Air Filtration System, 99.96% efficiency
Carburetor	IntelliCarb Compensating Carburetor
Anti-Vibration	STIHL anti-vibration system
Starter	ElastoStart with built-in shock absorber
Weight	21.5 lbs. (without cutting disc)
Consumer Warranty
Commercial Warranty	Verify with dealer
