SCAG TLS20-18BV Skid-Mount Truck Loader 18 HP Vanguard

SKU: TLS20-18BVCategories: Industrial

Not yet rated(0)

Produces 3,075 CFM through a 20-inch, 4-blade welded-steel impeller from an 18 HP Briggs & Stratton Vanguard engine. Steel skid risers with fork pockets mount directly to any truck bed, with quick-detach hose and an optional swing-away hitch-mount accessory available exclusively for this model. Two-year commercial warranty.

$5,389.00

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Scag TLS20-18BV Description

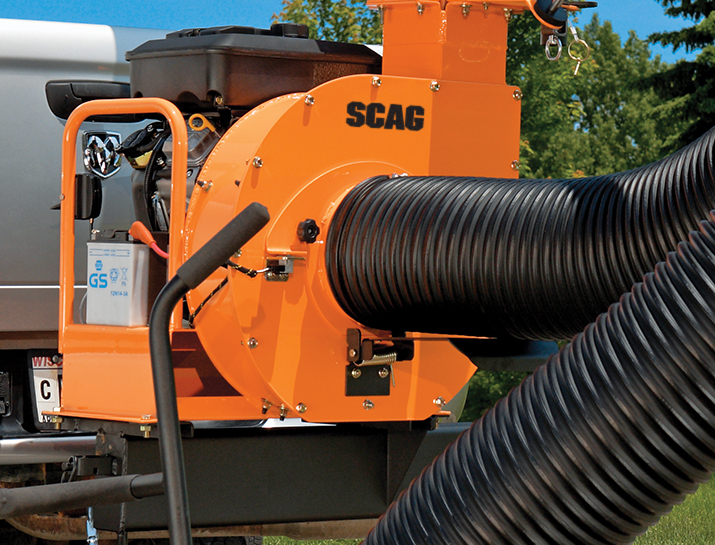

Compact and built for operations where a skid-mount configuration makes more sense than a trailer, the SCAG Skid-Mount Truck Loader produces 3,075 CFM through a 20-inch, 4-blade welded-steel impeller. Powered by an 18 HP Briggs & Stratton Vanguard engine with a 1.75-gallon engine-mounted metal fuel tank, it fits smaller crews and residential landscape contractors who need commercial-grade loading performance without the weight and footprint of a tow-behind.

Four-inch steel skid risers with fork pockets provide multiple mounting points and remove entirely to adapt to different truck bed configurations. An optional swing-away hitch-mount lets the loader pivot clear for dumping or debris removal from the truck bed, a feature only available on the TLS20-18BV. A quick-detach hose system simplifies daily transport, storage, and cleaning.

A replaceable 10-inch beveled steel intake nozzle feeds a 120-inch thermoplastic hose, routing debris via a 7-inch clear discharge tube. Bolt-in 1/4-inch wear liners extend housing life and a removable rear cover opens fast impeller access. Two-year commercial and two-year non-commercial warranty.

Scag TLS20-18BV Features

18 HP Vanguard Engine
Briggs & Stratton Vanguard engine delivers 3,075 CFM of reliable airflow in a compact, lightweight skid-mount package sized for smaller crews and residential commercial operations.

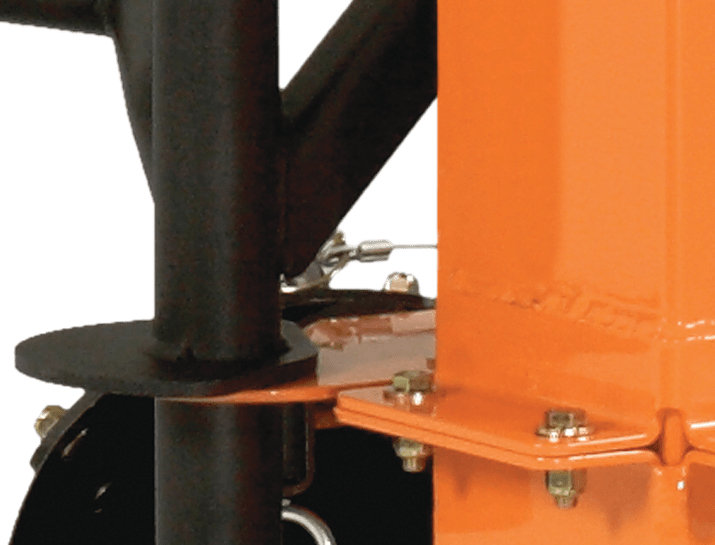

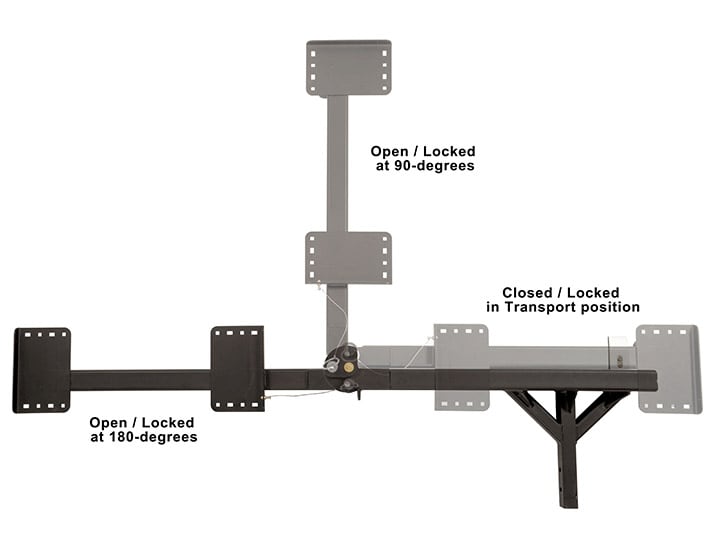

Optional Swing-Away Hitch Mount
Pivots clear of the truck bed in three locking positions for dumping or debris removal without dismounting. Only available on the TLS20-18BV model.

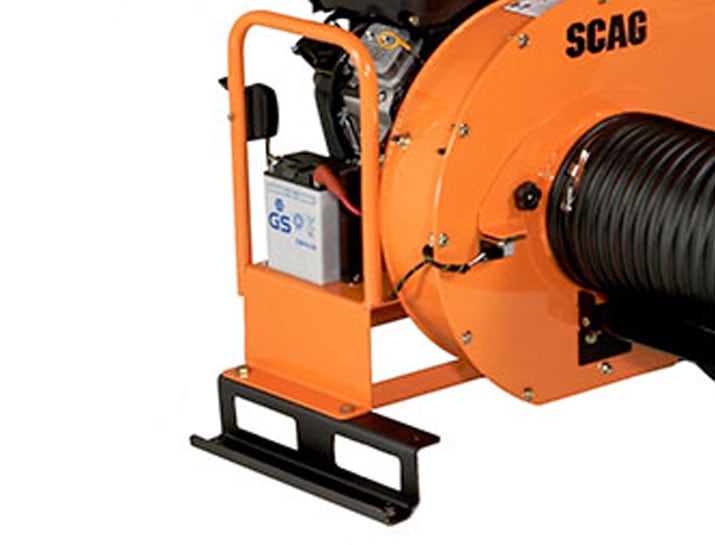

Steel Skid Risers with Fork Pockets
Fit 4-inch steel skid risers with multiple install points to a wide variety of truck beds and skid applications. Remove them entirely when the platform demands a different configuration.

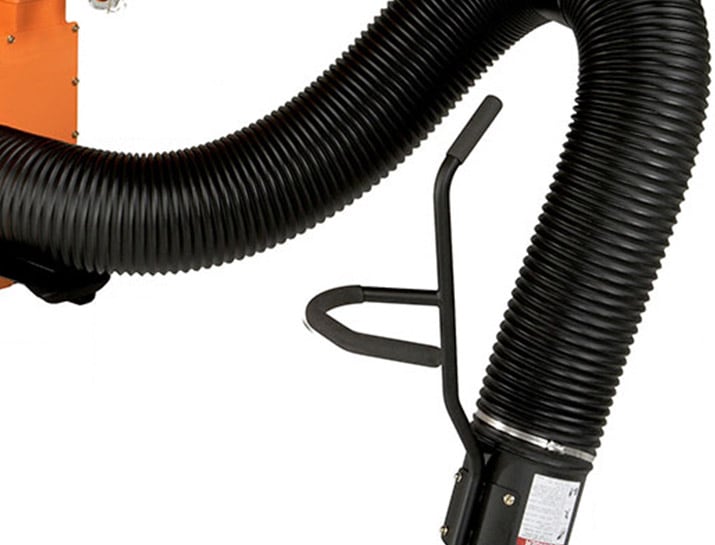

Quick-Detach Hose System
Detaches the intake hose quickly for transport, storage, or cleaning between jobs, simplifying daily setup and teardown.

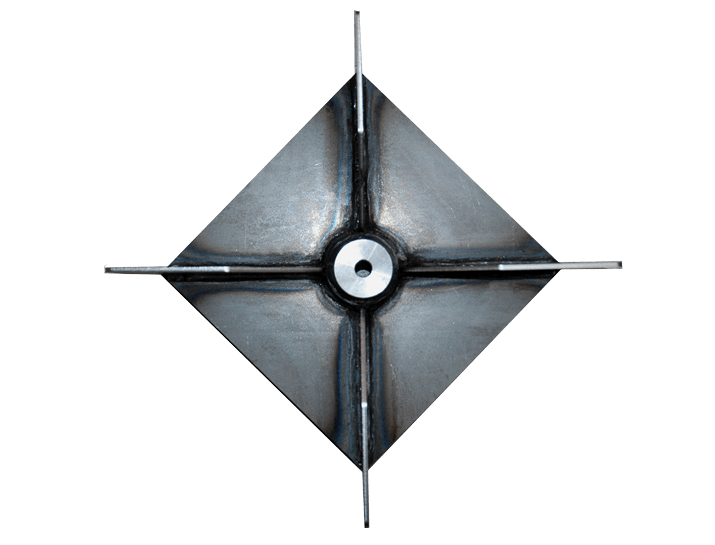

20" 4-Blade Welded Steel Impeller
Dynamically balanced 3/8-inch thick blades in a 6-inch housing move debris through efficiently while keeping vibration and engine stress low.

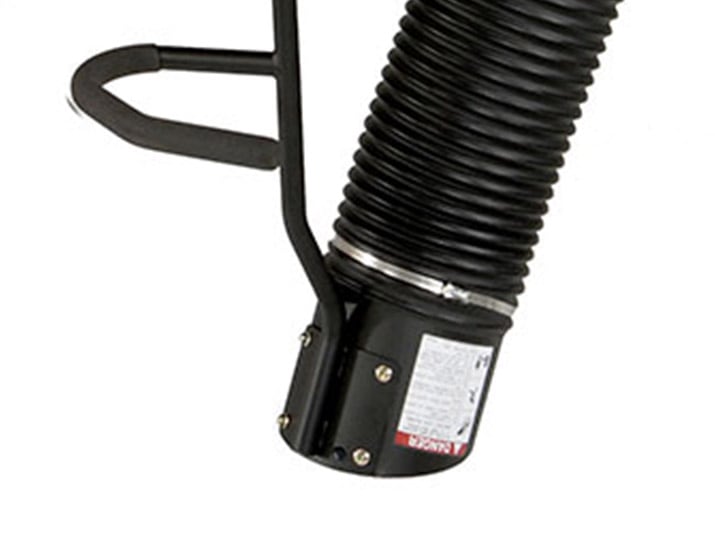

10" Beveled Intake Nozzle
Comes with a replaceable 10-inch beveled steel nozzle, 120-inch thermoplastic hose, and 7-inch clear discharge tube for commercial leaf pickup.
Replaceable Wear Liner System
Bolts in 1/4-inch wear liners to extend housing life and lower service costs. A removable rear cover opens fast access to the impeller for scheduled maintenance.
Locking Transport System
Secures the boom arm with a transport lock; a nozzle pin locks the intake hose to prevent movement during transport and storage between job sites.

Scag TLS20-18BV Specifications


Engine	Briggs & Stratton Vanguard
Engine Horsepower	18 HP
CFM Output	3,075 CFM
Fuel Capacity	1.75 gallons (engine-mounted metal tank)
Impeller Diameter	20 in.
Impeller Width	5.25 in.
Intake Hose Diameter	10 in.
Intake Hose Length	120 in.
Discharge Tube Diameter	7 in.
Mounting	4 in. steel skid risers with fork pockets
Height	74.25 in. (without skid or hitch mount attached)
Weight	437 lbs.
Consumer Warranty
Commercial Warranty	2 years / 90-day rental
