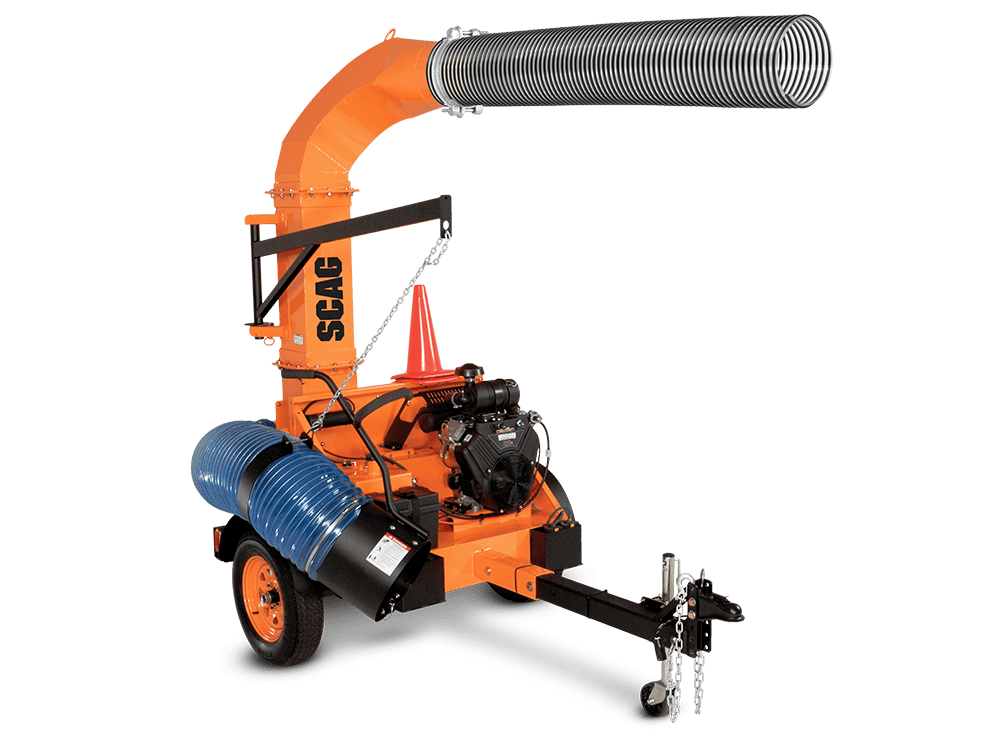

SCAG TLB25-49KBD Industrial Tow-Behind Truck Loader 49 HP Kubota
Produces 7,318 CFM through a heavy-duty 25-inch, 4-blade welded-steel impeller from a Tier 4 compliant 49 HP Kubota 4-cylinder liquid-cooled diesel with electric start. Ships highway-ready with a Dexter Torflex 3,500 lb axle, 16-inch intake nozzle, and 8.5-gallon fuel tank. Standard pintle hitch; optional 2-5/16″ ball coupler. Two-year commercial warranty.
$39,999.00
To maintain brand standards, this product is only available for purchase in-store.
As dealers, we are required by our manufacturer to unpack, prep, and test every unit we sell and then take our customers through a short training session on the parts and controls of the unit both for their safety and protection as well as familiarity with the power tool. This hands-on approach has continued to serve our company efficiently and well for over 50 years. So, we appreciate your understanding when we cannot ship certain products from our website.
Please call 972-235-2086 for details or to arrange in-store pickup.
Scag TLB25-49KBD Description
Landscaping crews, municipalities, and golf courses that need the most from a tow-behind loader have one option at the top of the SCAG Industrial line. A Tier 4 compliant 49 HP Kubota 4-cylinder liquid-cooled diesel with electric start drives the Industrial Tow-Behind Truck Loader through a 25-inch, 4-blade welded-steel impeller at 7,318 CFM, 6% more output than the gas-powered variants. Diesel fuel economy and longevity back that up on routes that run all day.

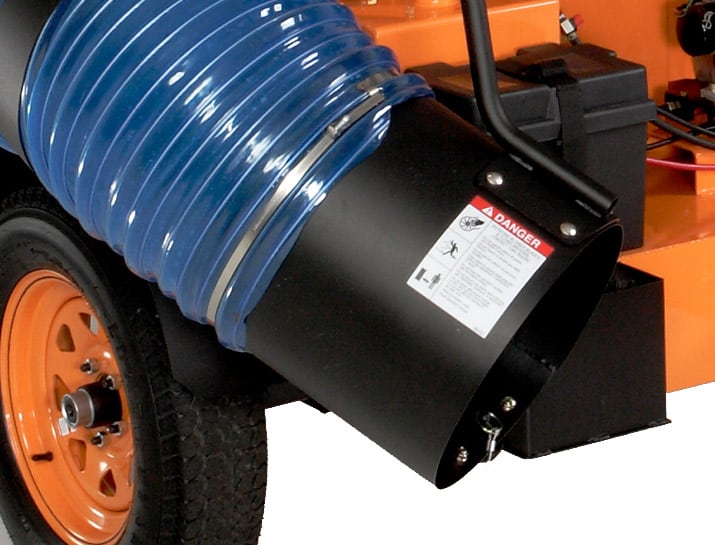

A 16-inch steel intake nozzle takes in more per pull than 12-inch models. An 84-inch, 0.045-inch polyurethane intake hose and a 12-inch clear discharge tube route material to the truck bed with fewer jams. Bolt-in 1/4-inch wear liners extend housing life on high-cycle routes, and a removable rear cover opens impeller access without housing removal. Standard pintle hitch is included; a 2-5/16″ ball coupler is available as an optional upgrade. A locking boom arm with transport pin secures everything between job sites.
Ships highway-ready with a roadside package including wheel chocks and cones. A Dexter Torflex 3,500 lb axle with 205/75 D15 highway tires handles the added weight of the diesel drivetrain at road speeds. An 8.5-gallon fuel tank with built-in gauge tracks fuel through long commercial jobs. Two-year commercial warranty.
Scag TLB25-49KBD Features
49 HP Kubota Tier 4 Diesel Engine
Runs on a Tier 4 compliant Kubota 4-cylinder liquid-cooled diesel with electric start, delivering 7,318 CFM at the top of the SCAG Industrial Tow-Behind line. Diesel fuel economy and longevity support full commercial work days.
7,318 CFM Maximum Output
Produces the highest airflow of any SCAG truck loader, 6% above the gas-powered variants, for faster loading cycles on large commercial properties and municipal leaf collection routes.

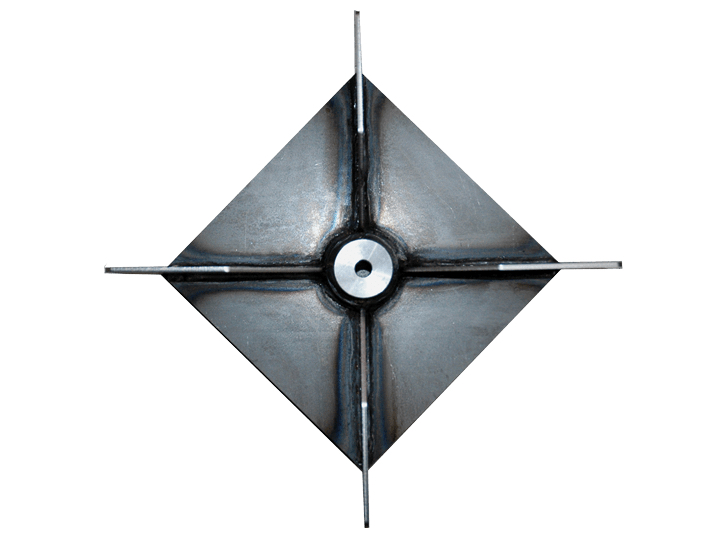

25" 4-Blade Welded Steel Impeller
Dynamically balanced 1/2-inch thick blades in a 10.5-inch housing move high-volume debris through without vibration buildup or undue engine stress across long commercial work days.
16" Oversized Intake Nozzle

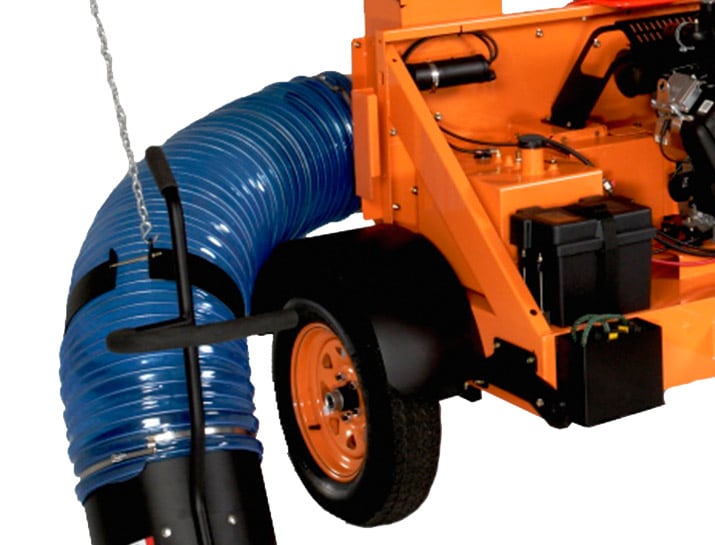

Comes with a replaceable 16-inch steel nozzle and 84-inch polyurethane hose rated for high-volume municipal and commercial pickup.

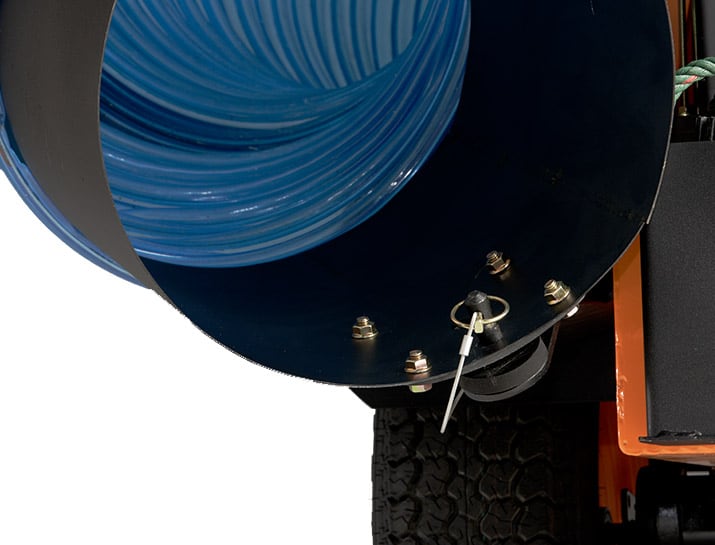

Replaceable Wear Liner System
Bolts in 1/4-inch wear liners for extended housing life. A removable rear cover opens fast access to the impeller and wear plates for scheduled maintenance.
Highway-Ready Package
Ships standard with wheel chocks and cones, plus a Dexter Torflex 3,500 lb axle with 205/75 D15 highway tires for stable road transport under the diesel drivetrain’s added weight.

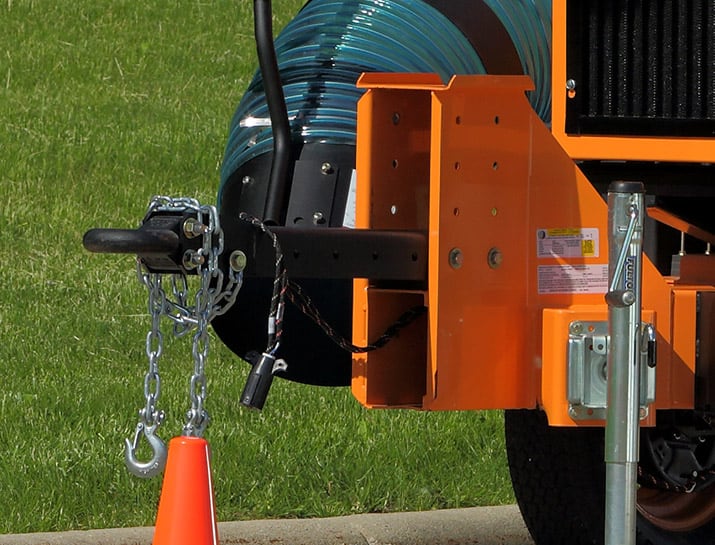

Pintle Hitch Standard
Ships with a pintle hitch for heavy-duty commercial towing. Accepts an optional 2-5/16″ ball coupler to fit additional truck configurations.
8.5-Gallon Fuel Tank with Gauge
Holds 8.5 gallons in a steel tank with wide filler neck and built-in gauge. Diesel fuel economy extends field time between fuel stops on long commercial routes.
Scag TLB25-49KBD Specifications
| Engine | Kubota Tier 4, 4-cylinder, liquid-cooled, electric start |
| Engine Horsepower | 49 HP |
| CFM Output | 7,318 CFM |
| Fuel Capacity | 8.5 gallons |
| Impeller Diameter | 25 in. |
| Impeller Width | 9 in. |
| Intake Hose Diameter | 16 in. |
| Intake Hose Length | 84 in. |
| Discharge Tube Diameter | 12 in. |
| Axle | Dexter Torflex, 3,500 lb |
| Tires | 205/75 D15 highway |
| Hitch | Pintle hitch standard; 2 5/16" ball coupler optional |
| Trailer Width | 66.75 in. |
| Height | 121.25 in. |
| Weight | 2,300 lbs. |
| Consumer Warranty | |
| Commercial Warranty | 2 years / 90-day rental |
