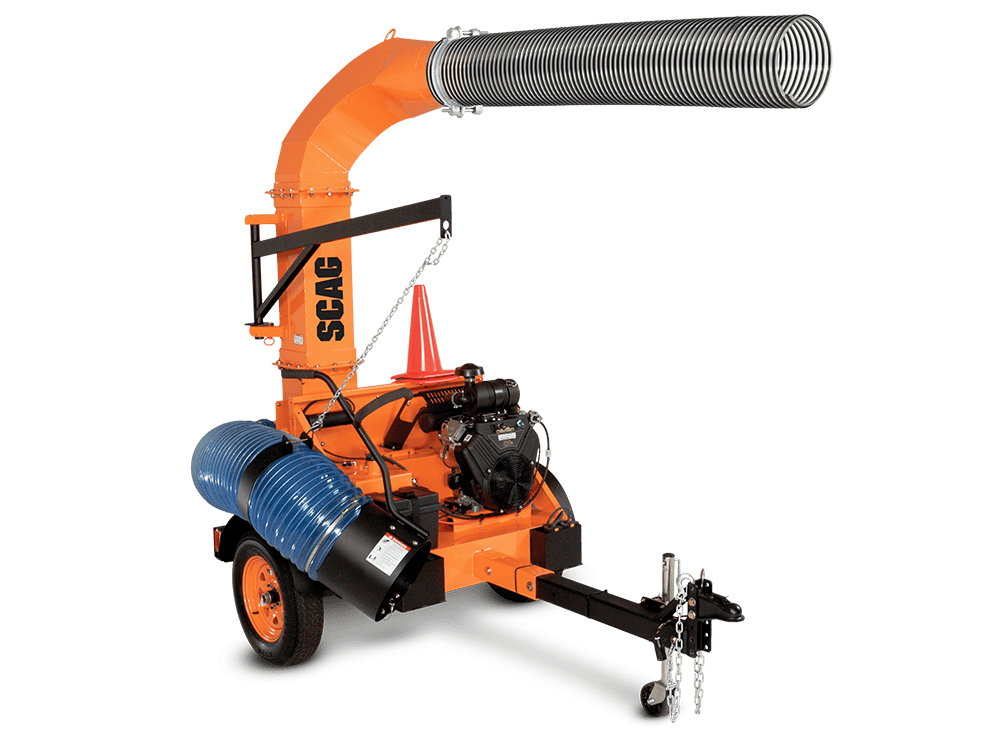

SCAG TLB25-35BV Industrial Tow-Behind Truck Loader 35 HP Vanguard

SKU: TLB25-35BVCategories: Industrial

Not yet rated(0)

Produces 6,781 CFM through a heavy-duty 25-inch, 4-blade welded-steel impeller from a 35 HP Briggs & Stratton Vanguard BIG BLOCK V-Twin. Ships highway-ready with a Dexter Torflex 3,500 lb axle, 16-inch intake nozzle, and 8.5-gallon fuel tank. Two-year commercial warranty.

$16,699.00

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Scag TLB25-35BV Description

Landscaping crews, municipalities, and golf courses running large-scale leaf pickup need a loader with real capacity. A 35 HP Briggs & Stratton Vanguard BIG BLOCK V-Twin with electric start drives the SCAG Industrial Tow-Behind Truck Loader through a 25-inch, 4-blade welded-steel impeller at 6,781 CFM. Step up from the 20-inch models and the difference is real: larger impeller, heavier blades, bigger engine, faster loading on large properties.

A 16-inch steel intake nozzle takes in more per pull than the 12-inch models. An 84-inch, 0.045-inch polyurethane intake hose and a 12-inch clear discharge tube route material to the truck bed with fewer jams. Bolt-in 1/4-inch wear liners extend housing life on high-cycle routes, and a removable rear cover opens impeller access without housing removal. A locking boom arm with transport pin keeps everything in place on the road.

Ships highway-ready with a roadside package including wheel chocks and cones. A Dexter Torflex 3,500 lb axle with 205/75 D15 highway tires handles the machine’s weight at road speeds. An 8.5-gallon fuel tank with built-in gauge tracks fuel through long commercial jobs. Two-year commercial warranty.

Scag TLB25-35BV Features

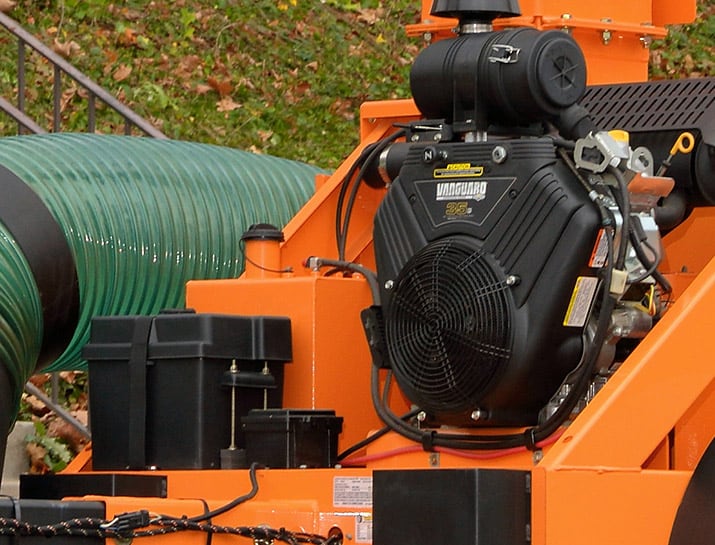

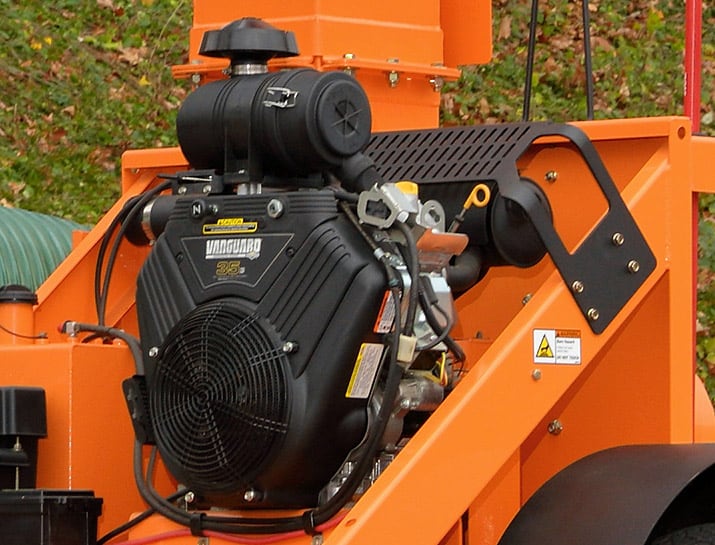

35 HP Vanguard BIG BLOCK Engine
Runs on a Briggs & Stratton Vanguard BIG BLOCK V-Twin with electric start, producing 6,781 CFM. Built for commercial-scale leaf loading on large properties and municipal routes.

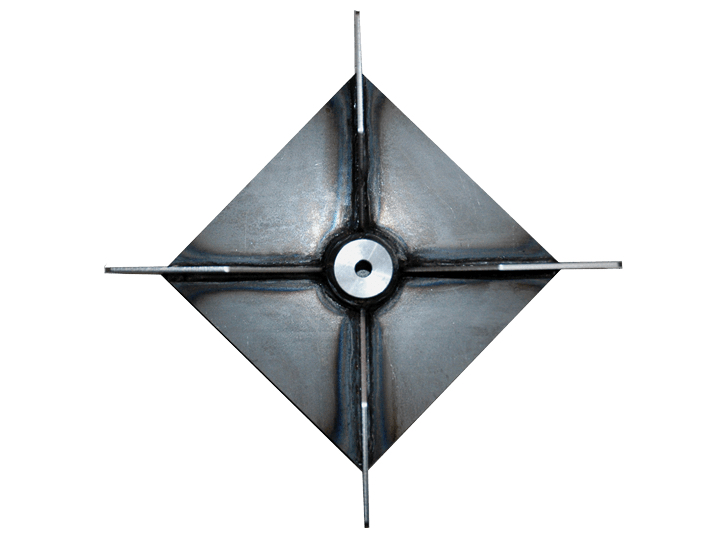

25" 4-Blade Welded Steel Impeller
Dynamically balanced 1/2-inch thick blades in a 10.5-inch housing move high-volume debris through without vibration buildup or undue engine stress.

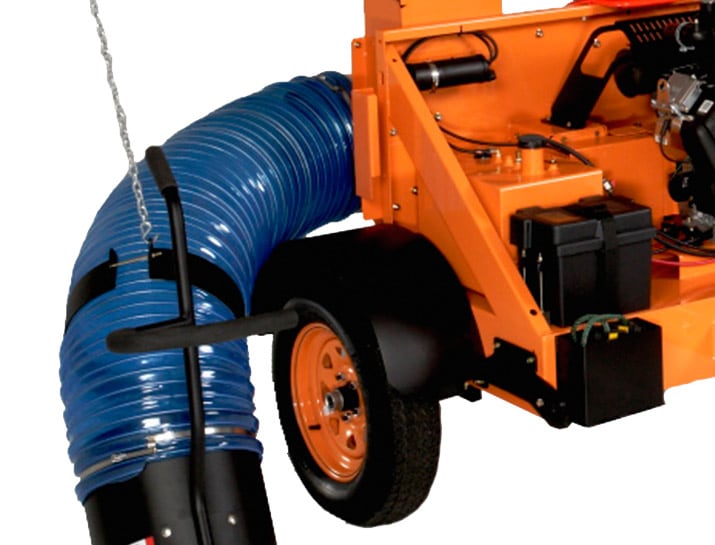

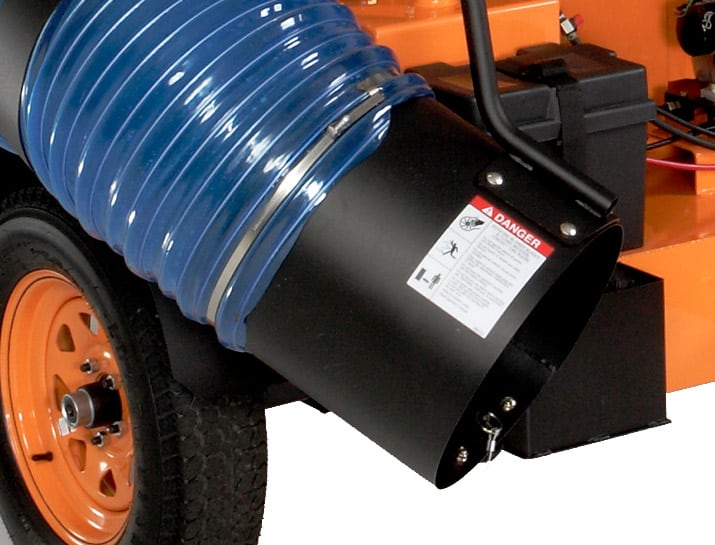

16" Oversized Intake Nozzle
Comes with a replaceable 16-inch steel nozzle and 84-inch polyurethane hose rated for high-volume municipal and commercial pickup.
Replaceable Wear Liner System
Bolts in 1/4-inch wear liners for extended housing life. A removable rear cover opens impeller access without pulling the housing.
Highway-Ready Package
Ships standard with wheel chocks and cones, plus a Dexter Torflex 3,500 lb axle with 205/75 D15 highway tires for road-ready transport.
8.5-Gallon Fuel Tank with Gauge
Holds 8.5 gallons in a steel tank with wide filler neck and built-in gauge, supporting extended commercial routes without refueling interruptions.

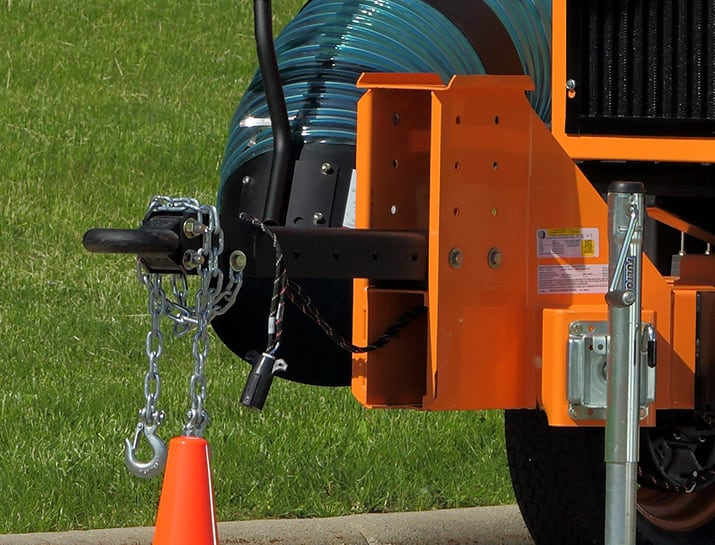

Adjustable Tongue and Hitch
Offers three tongue length options and a height-adjustable hitch to fit any truck configuration; accepts both ball coupler and pintle hitch.

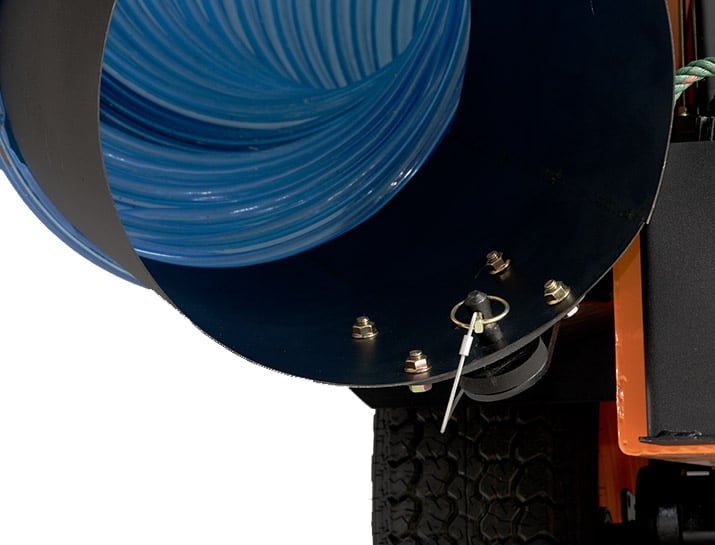

Locking Transport System
Transport lock secures the boom arm; a nozzle pin locks the intake hose to prevent movement during road travel between properties.

Scag TLB25-35BV Specifications


Engine	Briggs & Stratton Vanguard BIG BLOCK V-Twin, electric start
Engine Horsepower	35 HP
CFM Output	6,781 CFM
Fuel Capacity	8.5 gallons
Impeller Diameter	25 in.
Impeller Width	9 in.
Intake Hose Diameter	16 in.
Intake Hose Length	84 in.
Discharge Tube Diameter	12 in.
Axle	Dexter Torflex, 3,500 lb
Tires	205/75 D15 highway
Trailer Width	66.75 in.
Height	121.25 in.
Weight	1,700 lbs.
Consumer Warranty
Commercial Warranty	2 years / 90-day rental
