SCAG TL20W-33BV Tow-Behind Truck Loader 33 HP Vanguard

SKU: TL20W-33BVCategories: Industrial

Not yet rated(0)

Produces 4,680 CFM through a 20-inch, 4-blade welded-steel impeller from a 33 HP Briggs & Stratton Vanguard BIG BLOCK V-Twin with electric start. Highway-ready with a Dexter Torflex 2,000 lb axle, 12-inch beveled intake nozzle, and 5.5-gallon fuel tank. Two-year commercial warranty.

$10,599.00

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Scag TL20W-33BV Description

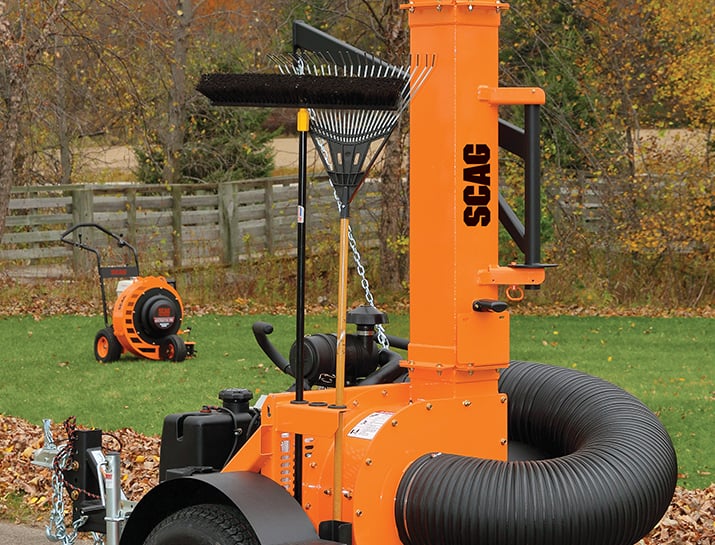

Commercial landscaping crews and municipalities who run heavy leaf routes need a loader with a proven engine behind it. A 33 HP Briggs & Stratton Vanguard BIG BLOCK V-Twin with electric start drives the SCAG Tow-Behind Truck Loader through a 20-inch, 4-blade welded-steel impeller at 4,680 CFM. The Vanguard BIG BLOCK has a long track record in sustained commercial outdoor power applications.

A replaceable 12-inch beveled steel intake nozzle feeds a 120-inch, 0.045-inch thermoplastic hose, routing debris to the truck bed via an 8-inch clear discharge tube. Bolt-in 1/4-inch wear liners extend housing life on high-cycle routes. A removable rear cover opens impeller access without pulling the housing. A locking boom arm and transport pin secure the hose and nozzle for road travel.

A Dexter Torflex 2,000 lb independent torsion axle with 205/75 R15 highway tires handles road transport. A 5.5-gallon fuel tank with built-in gauge tracks fuel throughout the day. An optional roadside package with wheel chocks and cones is available. Two-year commercial, 2-year non-commercial warranty.

Scag TL20W-33BV Features

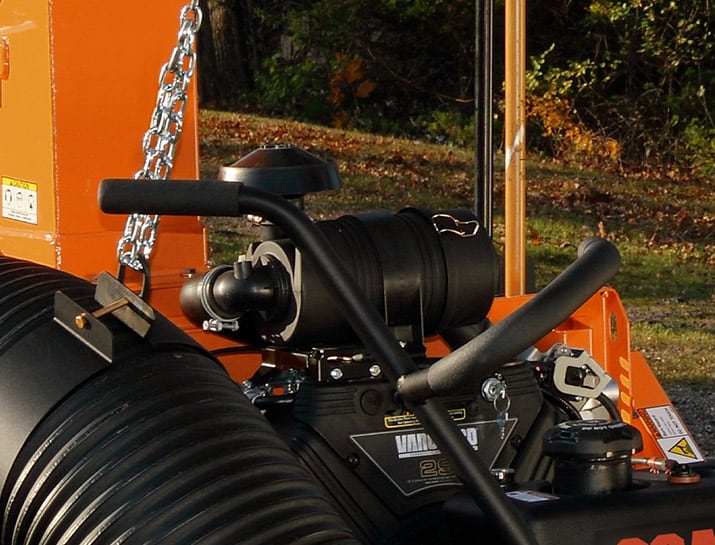

33 HP Vanguard BIG BLOCK Engine
Runs on a Briggs & Stratton Vanguard BIG BLOCK V-Twin with electric start, producing 4,680 CFM of sustained airflow. Commercial-proven in landscape and municipal leaf loading applications.

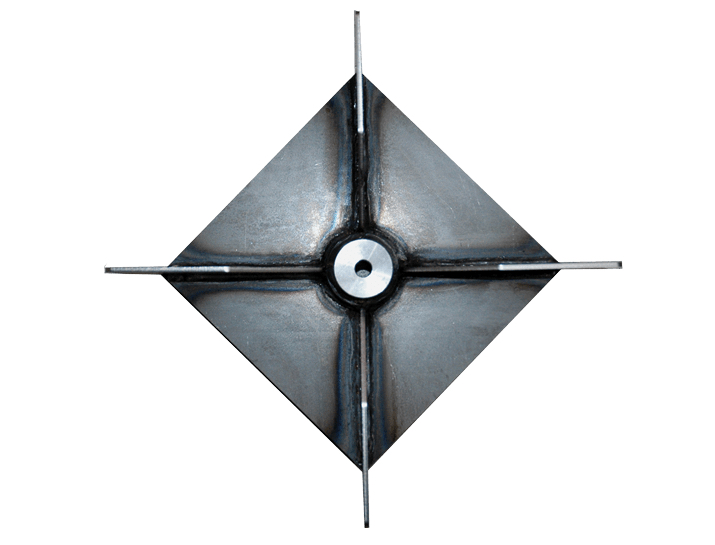

20" 4-Blade Welded Steel Impeller
Dynamically balanced 3/8-inch thick blades in a 7.5-inch housing move debris through efficiently, keeping vibration and engine stress in check across long commercial routes.

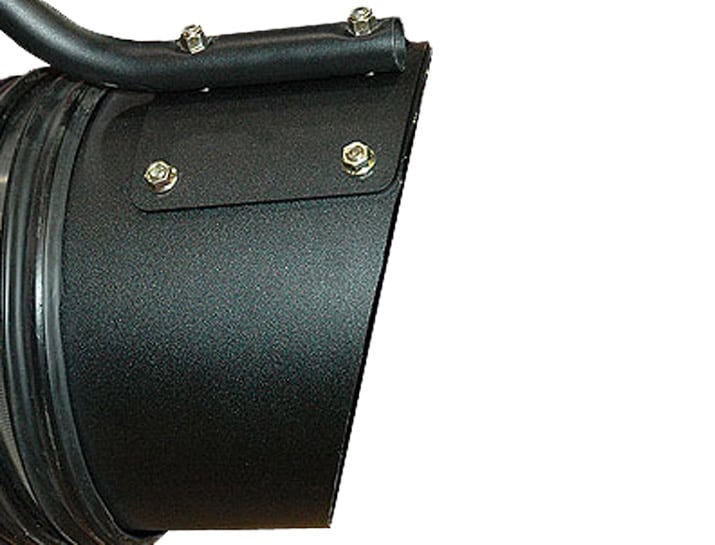

12" Beveled Intake Nozzle
Comes with a replaceable 12-inch beveled steel nozzle and 120-inch thermoplastic hose rated for high-volume municipal and commercial leaf loading.
Replaceable Wear Liner System
Bolts in 1/4-inch wear liners that extend housing life on high-cycle routes. A removable rear cover opens fast access to the impeller for maintenance.
Dexter Torflex Highway Axle
Rides on a Dexter Torflex 2,000 lb independent torsion axle with 205/75 R15 highway tires and steel wheels, stable at road speeds between job sites.

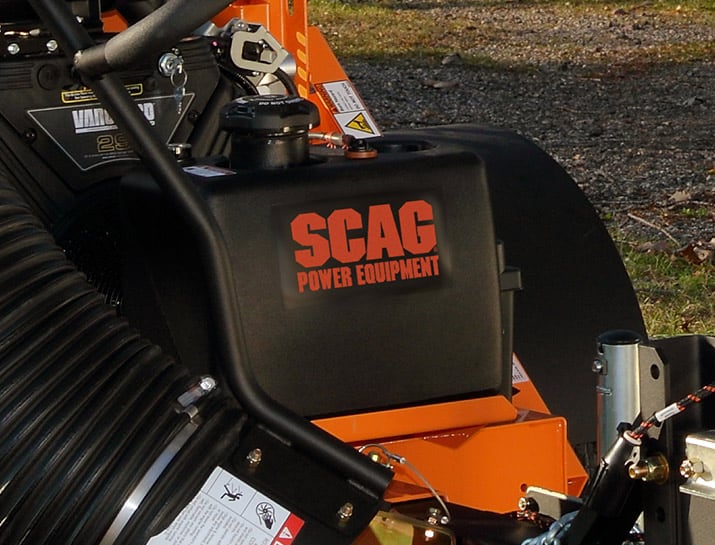

5.5-Gallon Fuel Tank with Gauge
Holds 5.5 gallons with a wide filler neck and built-in gauge, keeping crews on the job without guessing fuel level during commercial operations.

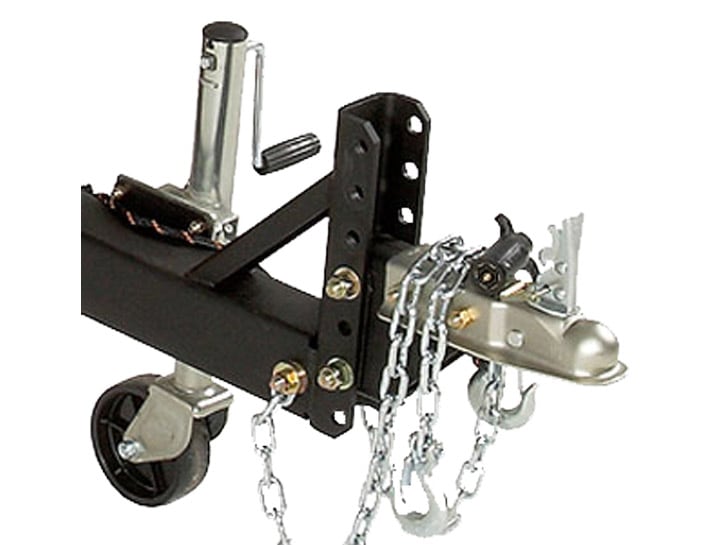

Adjustable Tongue and Hitch
Offers three tongue length options and a height-adjustable hitch. Accepts a 2″ ball coupler standard, plus a 2-5/16″ ball or pintle hitch.

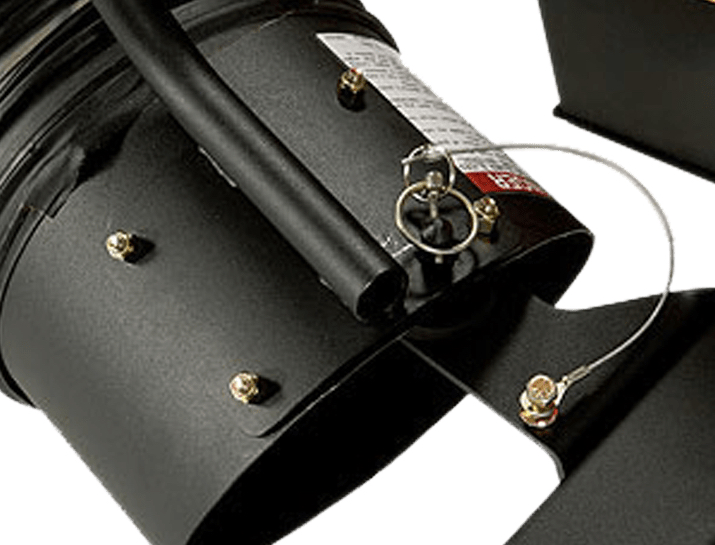

Locking Transport System
Transport lock secures the boom arm; a nozzle pin locks the intake hose to prevent movement during road travel between sites.

Scag TL20W-33BV Specifications


Engine	Briggs & Stratton Vanguard BIG BLOCK V-Twin, electric start
Engine Horsepower	33 HP
CFM Output	4,680 CFM
Fuel Capacity	5.5 gallons
Impeller Diameter	20 in.
Impeller Width	6.5 in.
Intake Hose Diameter	12 in.
Intake Hose Length	120 in.
Discharge Tube Diameter	8 in.
Discharge Tube Length	60 in.
Axle	Dexter Torflex, 2,000 lb
Tires	205/75 R15 highway
Trailer Width	53.5 in.
Height	110 in.
Weight	1,060 lbs.
Consumer Warranty
Commercial Warranty	2 years / 90-day rental
