SCAG TL20W-26CH-EFI Tow-Behind Truck Loader 26.5 HP Kohler EFI

SKU: TL20W-26CH-EFICategories: Industrial

Not yet rated(0)

Produces 4,680 CFM through a 20-inch, 4-blade welded-steel impeller from a 26.5 HP Kohler Command PRO EFI V-Twin with electronic fuel injection and electric start. Highway-ready with a Dexter Torflex 2,000 lb axle, 12-inch beveled intake nozzle, and 5.5-gallon fuel tank. Two-year commercial warranty.

$11,049.00

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Scag TL20W-26CH-EFI Description

Commercial landscaping crews and municipalities running leaf pickup routes need a loader that keeps pace without demanding attention. The SCAG Tow-Behind Truck Loader with Kohler EFI handles that job. A 26.5 HP Kohler Command PRO EFI V-Twin with electronic fuel injection and electric start produces 4,680 CFM through a 20-inch, 4-blade welded-steel impeller. EFI improves cold-start reliability and fuel efficiency over carbureted alternatives.

A replaceable 12-inch beveled steel intake nozzle feeds a 120-inch, 0.045-inch thermoplastic intake hose, routing debris to the truck bed via an 8-inch clear discharge tube. Bolt-in 1/4-inch wear liners extend housing life and replace on schedule. A removable rear cover opens access to the impeller without removing the housing. A locking boom arm and transport pin secure the hose and nozzle for road travel.

A Dexter Torflex 2,000 lb independent torsion axle with 205/75 R15 highway tires handles road transport. A 5.5-gallon fuel tank with built-in gauge tracks fuel throughout the day. An optional roadside package with wheel chocks and cones is available. Two-year commercial, 2-year non-commercial warranty.

Scag TL20W-26CH-EFI Features

26.5 HP Kohler Command PRO EFI
Runs on a Kohler Command PRO EFI V-Twin with electronic fuel injection and electric start, producing 4,680 CFM of sustained airflow with better cold-start reliability and fuel efficiency than carbureted options.

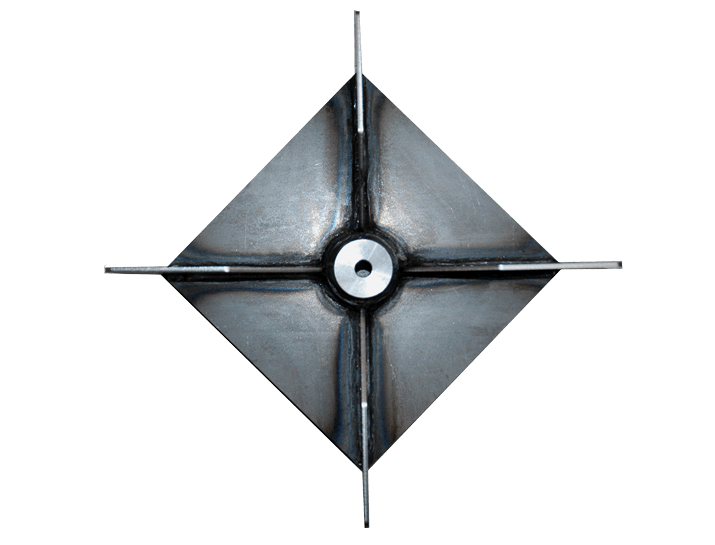

20" 4-Blade Welded Steel Impeller
Dynamically balanced 3/8-inch thick blades in a 7.5-inch housing move debris through efficiently while keeping vibration and engine stress low.

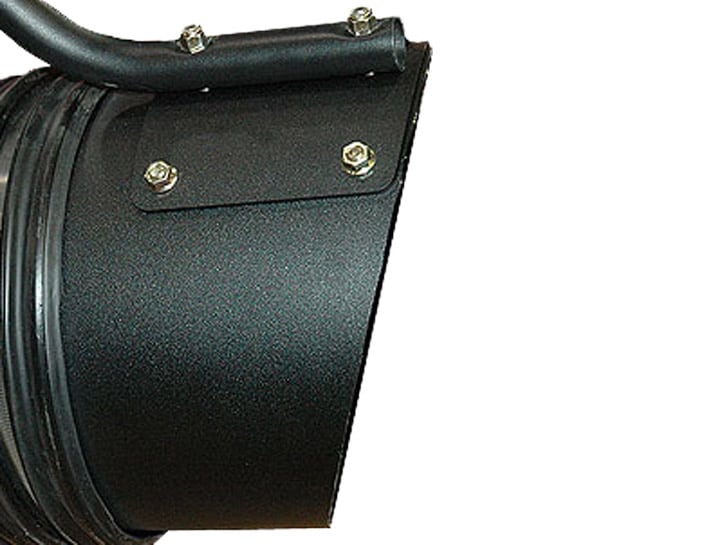

12" Beveled Intake Nozzle
Comes with a replaceable 12-inch beveled steel nozzle and 120-inch thermoplastic hose rated for commercial and municipal leaf loading volumes.
Replaceable Wear Liner System
Bolts in 1/4-inch wear liners that extend housing life when replaced on schedule. A removable rear cover opens impeller access without housing removal.
Dexter Torflex Highway Axle
Rides on a Dexter Torflex 2,000 lb independent torsion axle with 205/75 R15 highway tires and steel wheels, stable at road speeds between job sites.
5.5-Gallon Fuel Tank with Gauge
Holds 5.5 gallons with a wide filler neck and built-in gauge, keeping crews on the job without guesswork about fuel level during commercial operations.

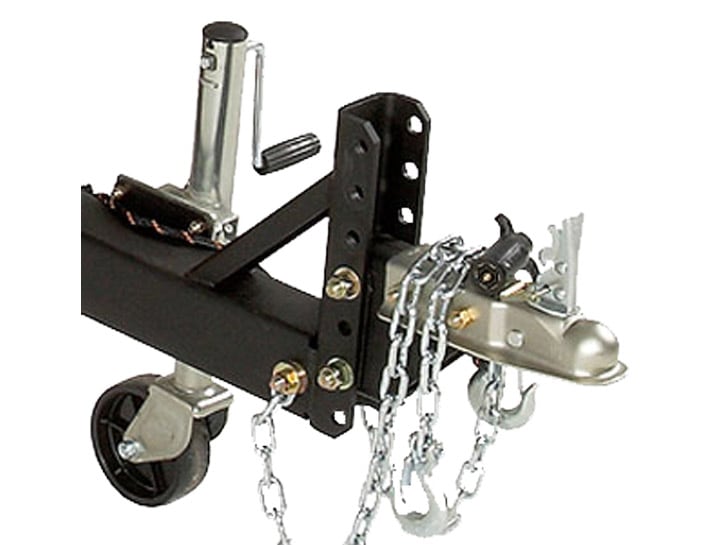

Adjustable Tongue and Hitch
Offers three tongue length options and a height-adjustable hitch to fit any truck. Accepts a 2″ ball coupler standard, plus a 2-5/16″ ball or pintle hitch.

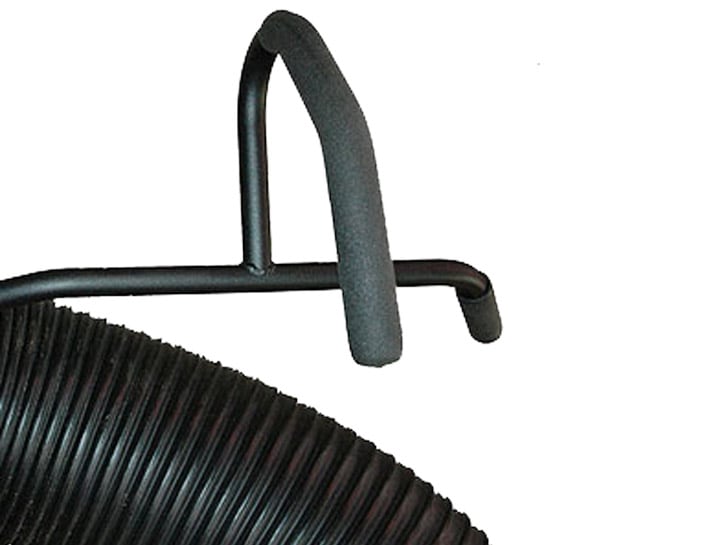

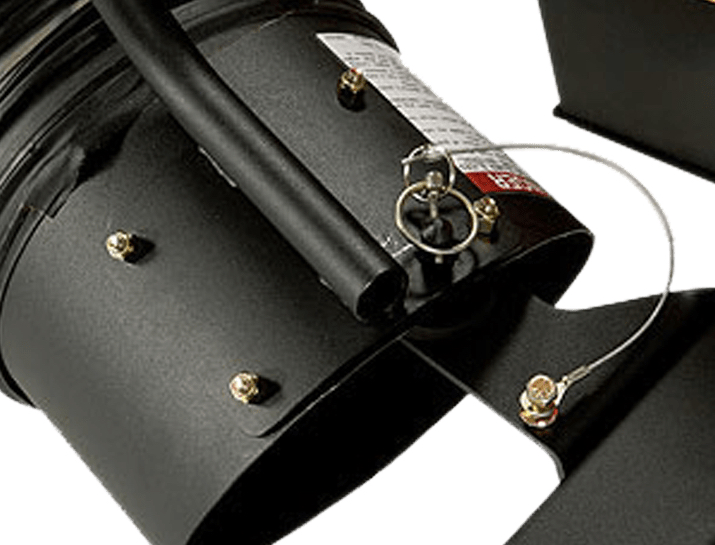

Locking Transport System
Transport lock secures the boom arm; a nozzle pin locks the intake hose to prevent movement during road travel between sites.

Scag TL20W-26CH-EFI Specifications


Engine	Kohler Command PRO EFI, V-Twin, electric start
Engine Horsepower	26.5 HP
CFM Output	4,680 CFM
Fuel Capacity	5.5 gallons
Impeller Diameter	20 in.
Impeller Width	6.5 in.
Intake Hose Diameter	12 in.
Intake Hose Length	120 in.
Discharge Tube Diameter	8 in.
Discharge Tube Length	60 in.
Axle	Dexter Torflex, 2,000 lb
Tires	205/75 R15 highway
Trailer Width	53.5 in.
Height	110 in.
Weight	990 lbs.
Consumer Warranty
Commercial Warranty	2 years / 90-day rental
