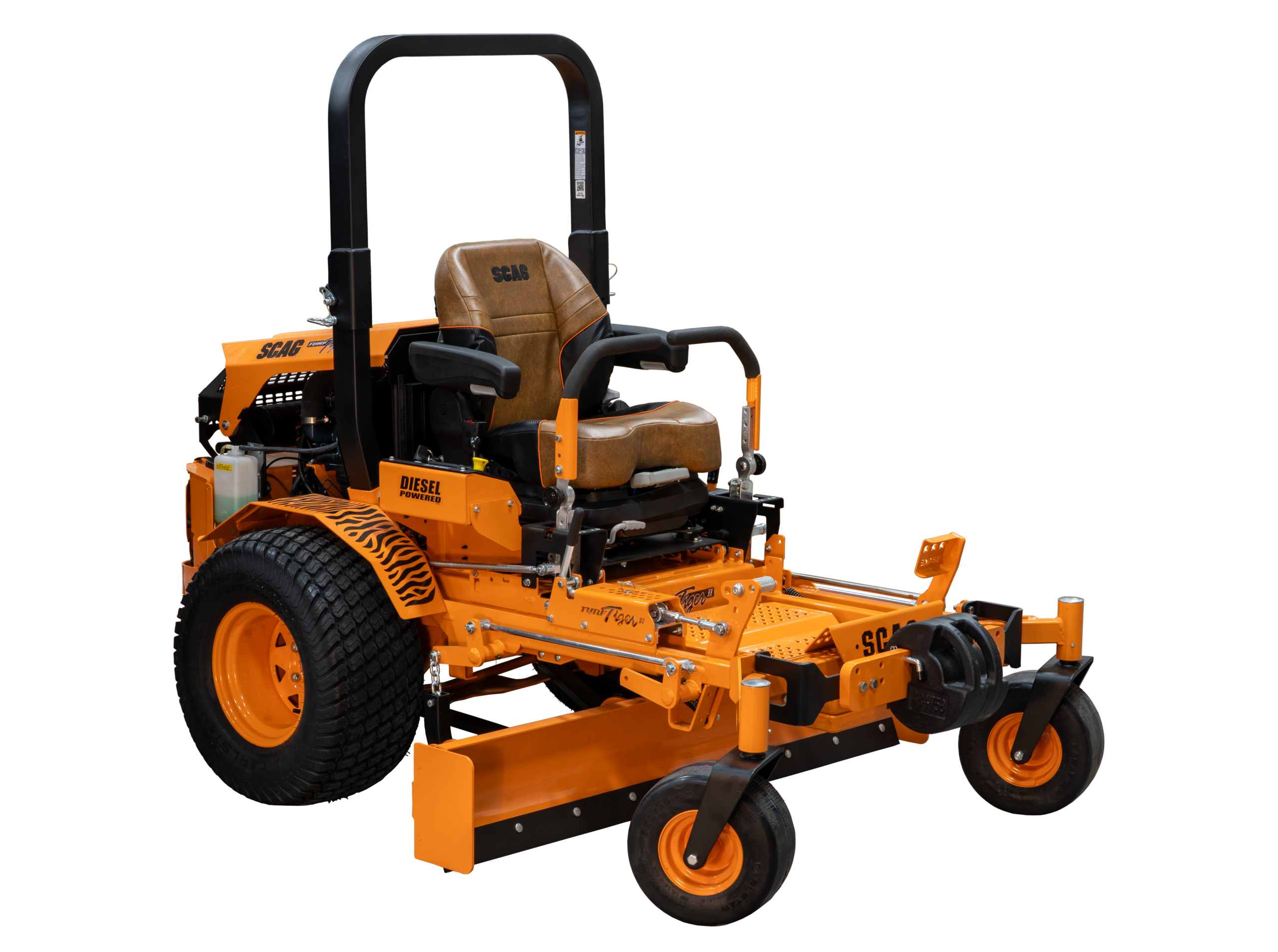

SCAG STTII-60GB-25KBD Turf Tiger Grader 60″ Kubota

SKU: STTII-60GB-25KBDCategories: Industrial

Not yet rated(0)

Converts the Turf Tiger II zero-turn platform into a ride-on grader for commercial site work. A 60-inch, 7-gauge steel mouldboard with replaceable bolt-on cutting edges, 5-position blade angle adjustment, and a 25 HP Kubota liquid-cooled diesel engine. Up to 10 mph forward, 6 mph reverse.

$19,349.00

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Scag STTII-60GB-25KBD Description

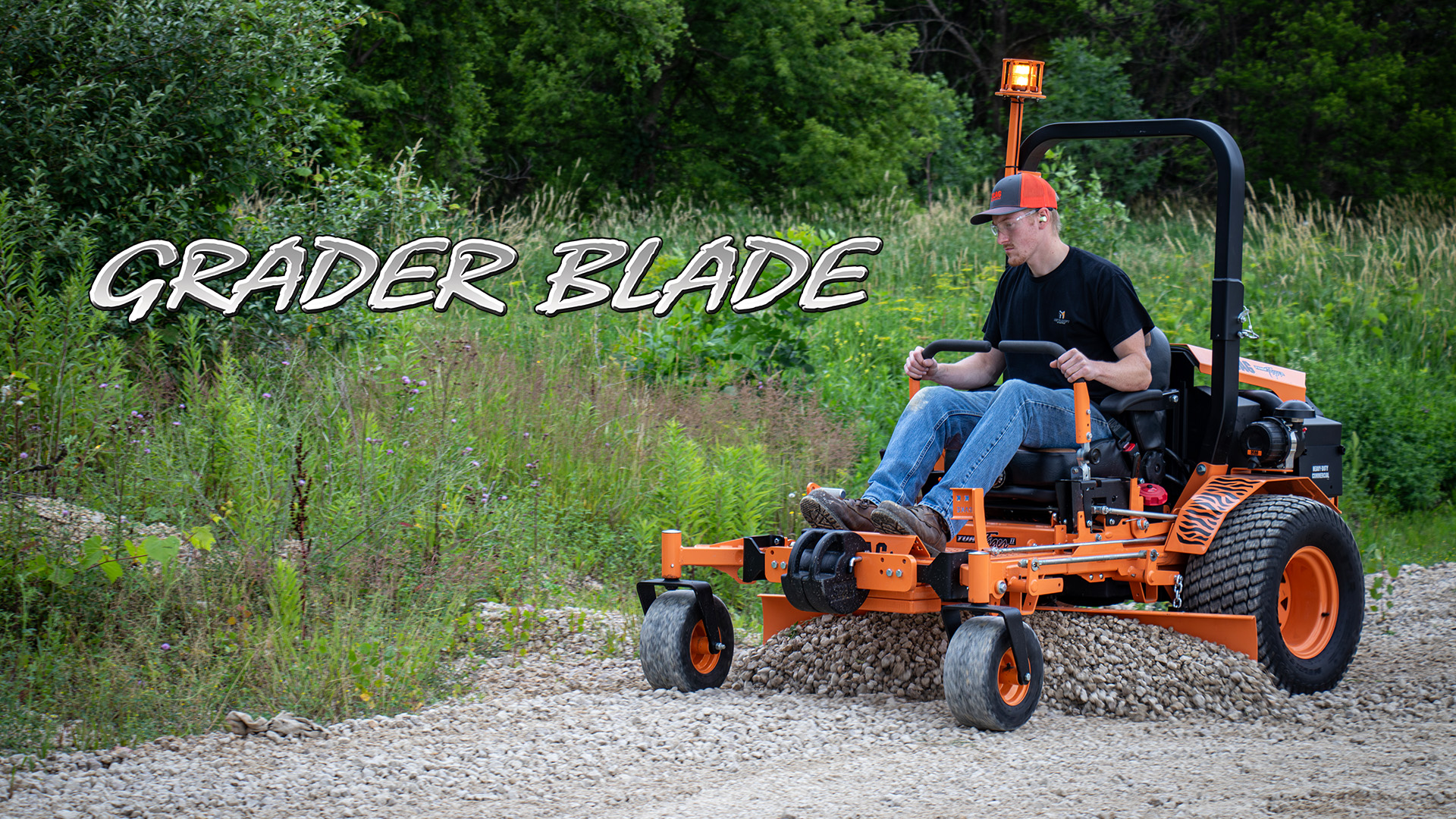

Built for scraping, leveling, and backfilling on commercial properties, the SCAG Turf Tiger Grader converts the proven Turf Tiger II zero-turn platform into a precision grading machine. A 60-inch, 7-gauge steel mouldboard handles parking lot leveling, base prep, and site finishing work that would otherwise require a dedicated grader or tractor-mounted blade.

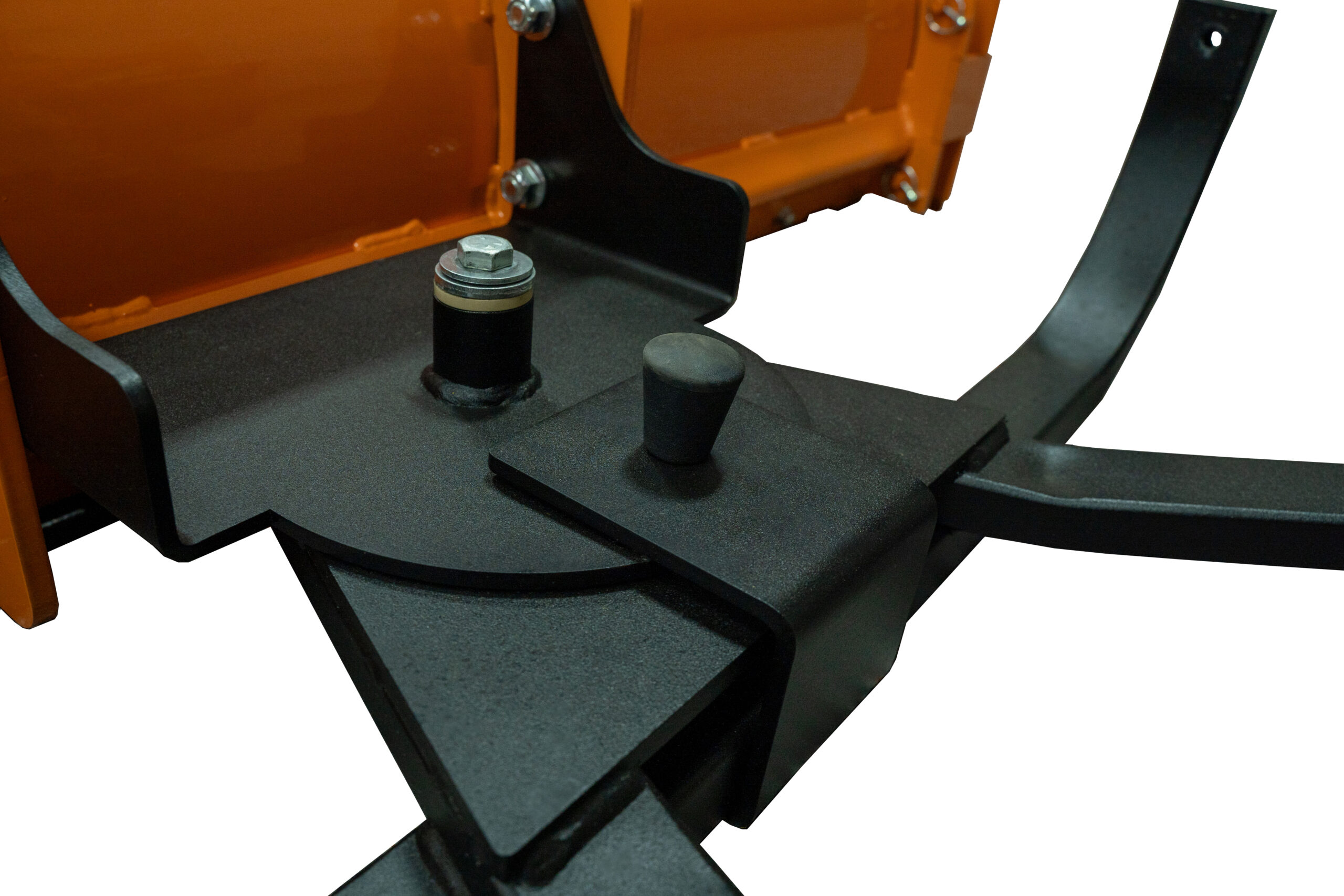

Bolt-on cutting edges are 0.375-inch thick, 3-inch high hardened steel, replaceable without swapping out the full blade assembly. A quick-adjustment pin changes blade angle between straight, 10 degrees left, 10 degrees right, 20 degrees left, and 20 degrees right without tools, so the operator can adapt as site conditions change. Removable 1/4-inch end caps protect the blade extremities and replace independently when worn.

Power comes from a liquid-cooled 25 HP Kubota diesel. Hydro-Gear 16cc pumps and Parker 18ci motors run the hydrostatic drive at up to 10 mph forward and 6 mph reverse. A 4-point iso-mounted torsion-spring suspension seat handles the vibration of all-day grading, and a 12-gallon fuel tank runs through long commercial projects. ROPS is standard and folds to 46.5 inches when height clearance is tight.

Scag STTII-60GB-25KBD Features

60" 7-Gauge Steel Mouldboard
Built from 7-gauge steel with replaceable 1/4-inch end caps. Handles commercial scraping, leveling, and backfilling without requiring a dedicated grader or tractor.

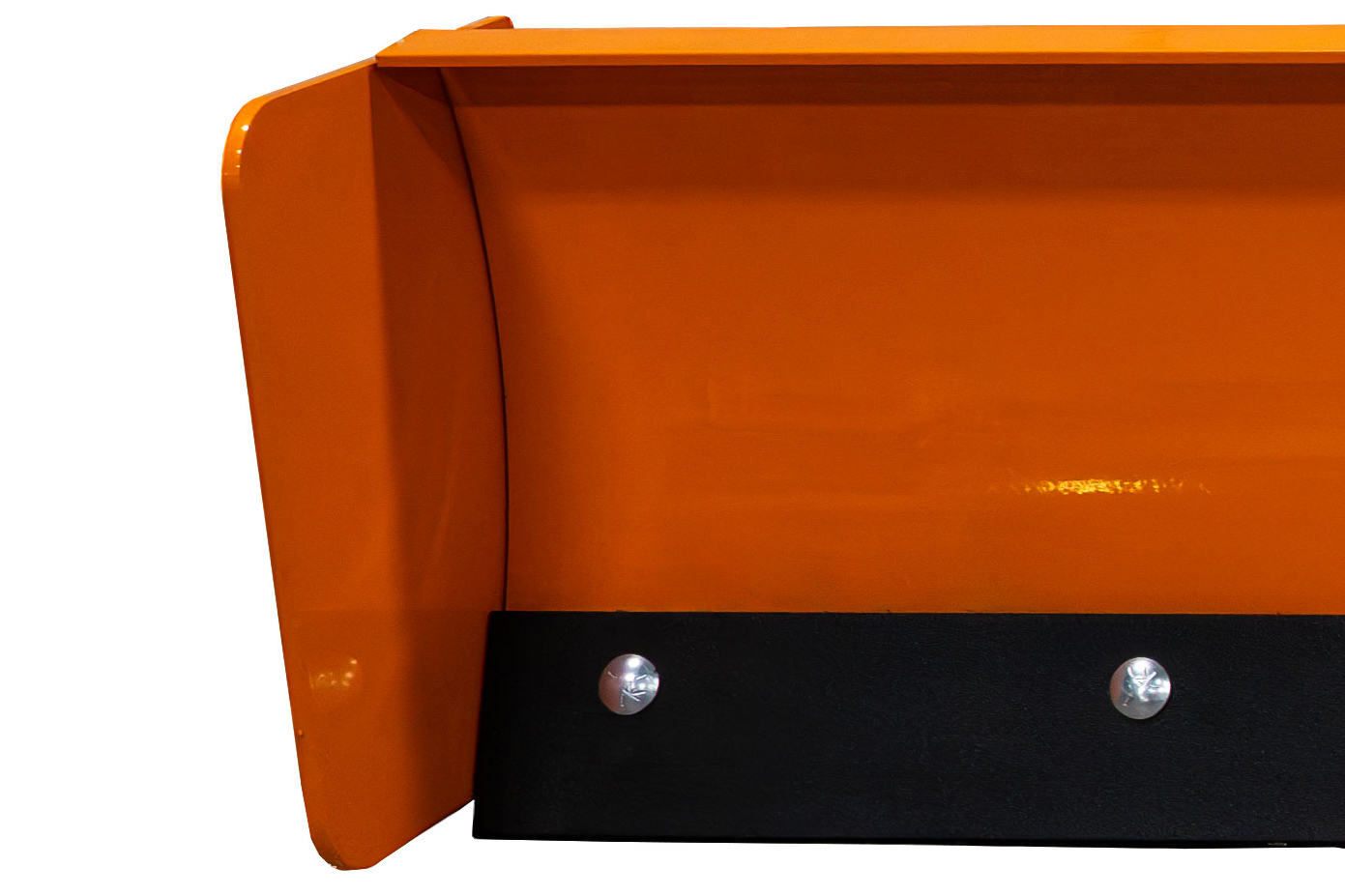

Replaceable Bolt-On Cutting Edges
Swaps out 0.375-inch thick, 3-inch high hardened steel cutting edges without replacing the full blade assembly, keeping operating costs and downtime low.
5-Position Blade Angle Adjustment
Changes blade angle to straight, 10 degrees left, 10 degrees right, 20 degrees left, or 20 degrees right with a quick-adjustment pin. No tools required.
25 HP Kubota Diesel Engine
Runs on a liquid-cooled 25 HP Kubota diesel, delivering reliable, fuel-efficient power for full commercial work days on grade work and site finishing.
Dual-Pump Hydrostatic Drive
Operates on Hydro-Gear 16cc pumps and Parker 18ci motors, reaching 10 mph forward and 6 mph reverse with responsive independent control.
Commercial Drive Tires
Rides on 26″ x 12″-12″ drive tires and 13″ x 6.5″-6″ caster tires, providing traction and stability on varied soil conditions and inclines.
12-Gallon Fuel Capacity
Holds 12 gallons of diesel fuel. Pairs with the engine’s efficiency to run through long commercial grading projects without mid-job refueling.
Suspension Seat with ROPS
Iso-mounts the operator seat on a 4-point torsion-spring suspension to handle all-day grading vibration. Standard ROPS folds to 46.5 inches for height-restricted applications.

Scag STTII-60GB-25KBD Specifications


Engine	Kubota diesel, liquid-cooled
Engine Horsepower	25 HP
Fuel Capacity	12 gallons
Grader Blade Width	60 in.
Grader Blade Construction	7-gauge steel mouldboard
Cutting Edge	0.375 in. thick x 3 in. high, replaceable bolt-on
Blade Angle Positions	5 positions: straight, 10 deg L/R, 20 deg L/R
Drive System	Dual hydrostatic (Hydro-Gear 16cc pumps, Parker 18ci motors)
Forward Speed	10 mph
Reverse Speed	6 mph
Drive Tires	26 in. x 12"-12"
Caster Tires	13 in. x 6.5"-6"
Length	88 in.
Width (blade straight)	60 in.
Height (ROPS down)	46.5 in.
Height (ROPS up)	68 in.
Consumer Warranty
Commercial Warranty	2 years (verify with dealer)
